Fibre Patch Leads - How To Choose The Best Cable

In today's digitally driven world, the need for high-speed and reliable communication networks is paramount. Fibre optic technology stands at the forefront of this revolution, offering unparalleled speed and efficiency. A critical component of this technology is the fibre patch lead, also known as a fibre optic patch cord or jumper. This blog post delves into the various types of fibre patch leads and provides guidance on how to select the right one for your needs.

What are Fibre Patch Leads?

Fibre patch leads are fibre optic cables used to connect network devices for signal routing. They serve as the physical link between equipment such as switches, routers, and transceivers, ensuring data is transmitted efficiently and accurately. The performance and reliability of a network can significantly depend on the type of fibre patch lead used.

• Types of Fibre Patch Leads
• How to Choose the Right Fibre Patch Lead
• The Importance of Connectors
• Future Trends in Fibre Optics
• Conclusion
• Resources and References

Types of Fibre Patch Leads

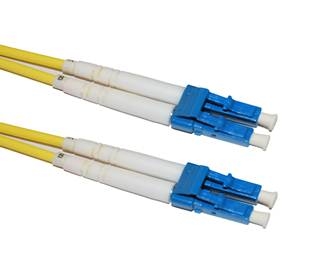

1. Single-Mode Fibre (SMF) Patch Leads

Characteristics: Core Size: Approximately 9 micrometers in diameter. Wavelength: Operates at 1310 nm and 1550 nm. Distance: Suitable for long-distance transmission. Colour: Typically yellow jacket.

Applications:

• Telecommunications networks: Connecting central offices over long distances.
• Data centers: Linking buildings or sections within large campuses.
• Metropolitan Area Networks (MANs): Covering wide geographical areas within a city.

Single-mode fibre patch leads are essential in scenarios where data needs to travel over long distances without significant loss or degradation. The small core size allows the light to travel in a single path, minimizing dispersion and maintaining signal integrity.

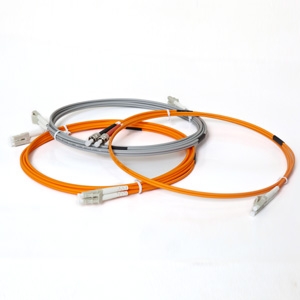

2. Multi-Mode Fibre (MMF) Patch Leads

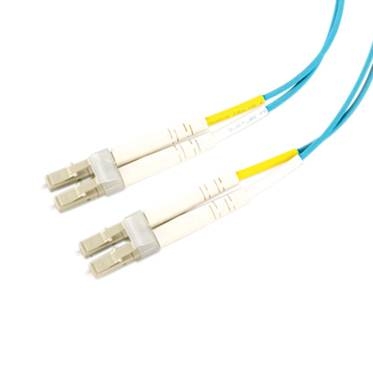

Characteristics: Core Size: 50 or 62.5 micrometers in diameter. Wavelength: Operates at 850 nm and 1300 nm. Distance: Suitable for shorter distances. Colour: Orange or aqua jacket, depending on the type (OM1, OM2, OM3, OM4).

Applications:

• Local Area Networks (LANs): Connecting devices within the same building.
• Data centers: Linking servers, switches, and storage area networks (SANs).
• Audio/Video Systems: Facilitating high-bandwidth audio/video transmission.

Multi-mode fibre patch leads are preferred in environments where high data rates over short distances are necessary. The larger core size allows multiple light modes to travel through the cable, supporting higher data rates but limiting the transmission distance.

3. Armored Fibre Patch Leads

Characteristics:

• Protection: Enhanced with a steel or aluminum jacket.
• Durability: Resistant to physical damage and harsh environments.
• Flexibility: Maintains flexibility despite the protective armor.

Applications:

• Industrial environments: Where machinery and human activity pose risks to cable integrity.
• Outdoor installations: Providing extra protection against environmental elements.

Armored fibre patch leads are designed to withstand tough conditions, including heavy foot traffic, mechanical impact, and exposure to environmental hazards. They are particularly useful in scenarios where cables might be exposed to potential damage, such as in factories or outdoor installations.

4. Mode Conditioning Patch Leads

Characteristics:

• Design: Hybrid cable combining single-mode and multi-mode fibres.
• Purpose: Reduces differential mode delay (DMD) issues in multi-mode fibres.

Applications:

• Gigabit Ethernet applications: Useful when upgrading from older 1000BASE-LX/LH equipment.
• Legacy systems: Enabling the use of existing multi-mode fibre plants for single-mode applications.

Mode conditioning patch leads are crucial in environments where older multi-mode fibre infrastructure is being upgraded to support single-mode applications. They help to reduce modal dispersion and ensure that the signal remains clear and strong.

5. Bend-Insensitive Fibre Patch Leads

Characteristics:

• Flexibility: Designed to maintain performance even when bent at sharp angles.
• Durability: Highly resistant to signal loss due to bending.
• Construction: Uses a special cladding layer to prevent light from escaping the core.

Applications:

• Residential installations: Navigating tight corners in homes.
• Data centers: High-density cabling environments.
• FTTH (fibre to the Home): Ensuring reliable connections in complex residential layouts.

Bend-insensitive fibre patch leads are engineered to maintain optimal performance even when subjected to tight bends and twists. This makes them ideal for cramped installations and environments where cables need to be routed through small spaces.

6. OM5 Wideband Multi-Mode Fibre (WBMMF) Patch Leads

Characteristics:

• Core Size: 50 micrometers in diameter.
• Wavelength Range: Optimized for wavelengths between 850 nm and 950 nm.
• Colour: Lime green jacket.

Applications:

• High-speed data centers: Enabling higher speeds and extended reach.
• Next-generation applications: Supporting emerging technologies requiring increased bandwidth and data rates.

OM5 wideband multi-mode fibre patch leads support higher bandwidth and extended reach, making them suitable for the latest high-speed data applications. They are designed to carry multiple wavelengths on a single fibre, thus optimizing data transmission capabilities.

How to Choose the Right Fibre Patch Lead

Selecting the appropriate fibre patch lead involves considering several key factors:

1. Distance Requirements

• Single-Mode Fibre: Ideal for long distances due to its small core size and capability to handle higher bandwidth over longer distances.
• Multi-Mode Fibre: Suitable for shorter distances, typically within the same building or campus.

When choosing a fibre patch lead, it's essential to match the cable type with the distance the signal needs to travel. Single-mode fibres are better for longer distances, while multi-mode fibres are sufficient for shorter connections.

Fibre Patch Lead Comparison:

2. Environment

• Standard Patch Leads: Suitable for controlled environments like office spaces and data centers.
• Armoured Patch Leads: Ideal for harsh environments where cables may be exposed to physical stress.

Consider the environmental conditions where the fibre patch leads will be installed. Armoured cables provide extra protection in environments with potential physical hazards.

3. Bandwidth Needs

• Higher bandwidth requirements may necessitate advanced multi-mode types like OM3, OM4, or OM5, which support higher data rates and longer distances within a building.

Evaluate the data transmission requirements of your network. If high bandwidth and fast data rates are needed, choosing the right multi-mode fibre type is crucial.

4. Compatibility

• Ensure that the patch lead type matches the equipment specifications, including connectors and transceivers.

Compatibility with existing network equipment is essential to ensure seamless integration and optimal performance.

5. Flexibility and Installation Conditions

• Bend-Insensitive Leads: Crucial for installations with tight spaces and sharp bends.
• Mode Conditioning Leads: Necessary when integrating different fibre types within a network.

Assess the physical layout of the installation area. Bend-insensitive leads are perfect for tight spaces, while mode conditioning leads are necessary for networks combining different fibre types.

The Importance of Connectors

The connectors on fibre patch leads play a critical role in network performance. Common types include:

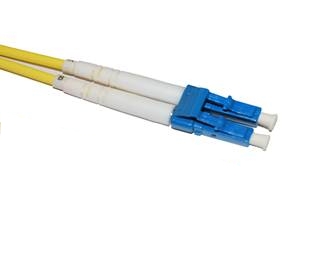

• LC (Lucent Connector): Small form factor, high-density, often used in modern data centers.
• SC (Subscriber Connector): Square connector, commonly used in enterprise networks.

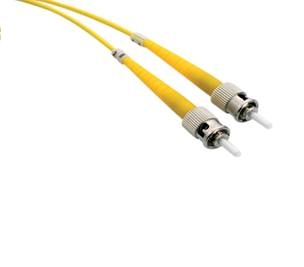

• ST (Straight Tip): Bayonet-style connector, often used in industrial settings.

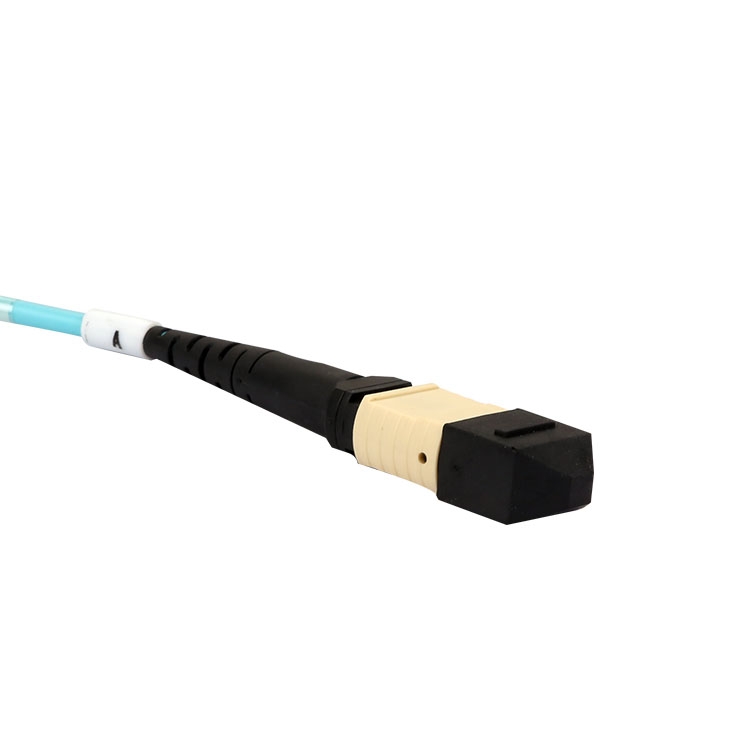

• MPO/MTP: Multi-fibre connectors, essential for high-density, high-speed networks.

Choosing the right connectors is just as important as choosing the right fibre type. Ensure that connectors are compatible with your equipment and are suitable for the network environment.

Connector Types:

LC (Lucent Connector)	SC (Subscriber Connector)	ST (Straight Tip)	MPO/MTP

Future Trends in Fibre Optics

The future of fibre optics is promising, with ongoing advancements poised to meet increasing data demands. Key trends include:

• Higher Bandwidth Requirements: Driven by the proliferation of IoT devices, 5G networks, and cloud computing.
• Increased Adoption of Bend-Insensitive Fibres: To accommodate complex installations and ensure performance reliability.
• Development of New Fibre Types: Such as OM5, supporting higher data rates and more wavelengths.
• Advancements in Connector Technology: Enhancing ease of use, reducing installation time, and improving connection reliability.

Staying updated on these trends will help ensure that your network infrastructure remains capable of supporting future advancements and increasing data demands.

Conclusion

Choosing the right fibre patch lead is crucial for optimizing network performance and reliability. By understanding the different types of fibre patch leads and their specific applications, you can make informed decisions that enhance connectivity and future-proof your network. Consider factors such as distance, environment, bandwidth needs, compatibility, and installation conditions to select the best fibre patch lead for your requirements.

Investing time in selecting the right fibre patch lead will pay off in terms of network efficiency, reduced downtime, and overall performance. Whether you are setting up a new network or upgrading an existing one, the right fibre patch leads are essential for ensuring a robust and efficient communication infrastructure.
